Xsion provides indoor and outdoor LED display installation methods detailed explanation | with the diagram, generally speaking, LED display installation methods are divided into indoor installation and outdoor installation. The installation of the LED display is designed according to the construction site, but in general, the most commonly used installation methods are as follows: hanging, rack installation, seat installation, floor support installation, column type, Mosaic type and roof type. Outdoor installation generally to draw the construction drawing or LED display steel structure diagram.
1. Installation method of outdoor display
The outdoor LED display area is large, and the design of its steel structure should consider many factors such as foundation, wind load, earthquake magnitude, waterproof, dustproof, ambient temperature, lightning protection and so on.Power distribution cabinet, air conditioning, axial-flow fan, lighting and other auxiliary equipment should be placed in the steel structure, and there are also maintenance facilities such as horse lanes and ladders. The entire outdoor screen structure should meet the protection level below IP65.

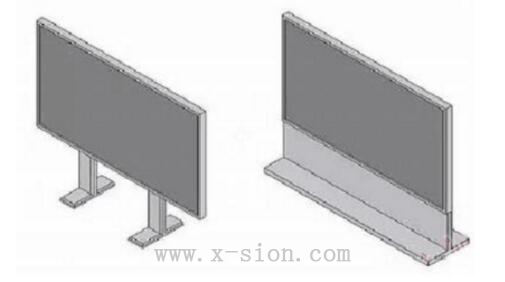

Floor support type

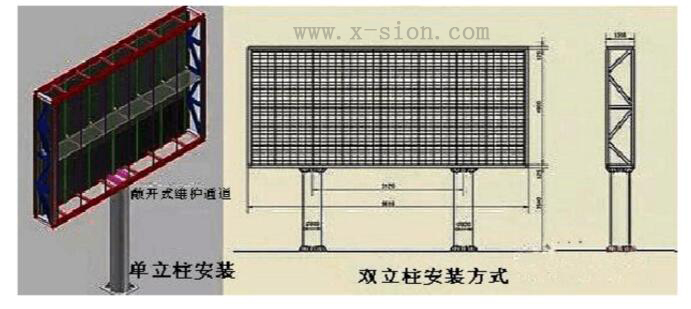

2. Column type
Install the outdoor screen on the platform or the column. Columns are divided into columns and double columns, in addition to the need to make screen steel structure, but also need to make concrete or steel columns, mainly considering the geological condition of the foundation. Columnar-mounted LED displays are usually used by schools, hospitals, and public utilities for publicity and notification.

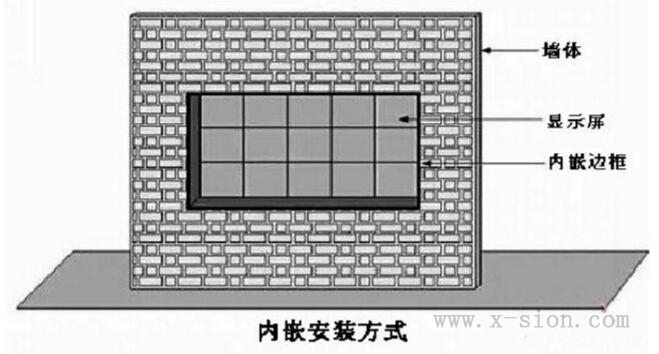

3. Mosaic
The mounted structure is to open a hole in the wall and insert the display screen inside it. The size of the hole is required to match the size of the outer frame of the display screen, and to do appropriate decoration. In order to facilitate the maintenance of the hole on the wall, it must be through, otherwise it is necessary to use the former disassembly mechanism.
4. Roof type
2. Installation method of the indoor display

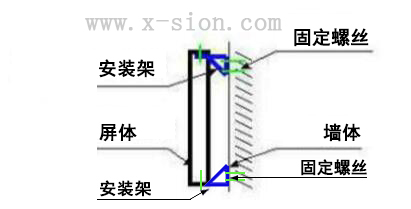

1, hanging - wall installation
Suitable for display less than 10 square meters, the total weight of the screen is less than 50kg LED display, can be directly hung on the load bearing wall, without leaving maintenance space. The walls must be solid or have concrete beams hanging on them. Hollow bricks or simple partitions are not suitable for this installation method.

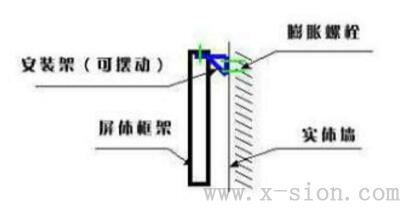

Rotary bracket mounting: suitable for weight greater than 50kg, screen height and width are greater than 1200mm display, must be installed on the load bearing wall, because of its general area is large, disassembly is difficult, so through the screen rotation to solve the maintenance space.
2, rack installation
Suitable for more than 10 square meters of display, and easy to repair. Other specific requirements are the same as wall installation.

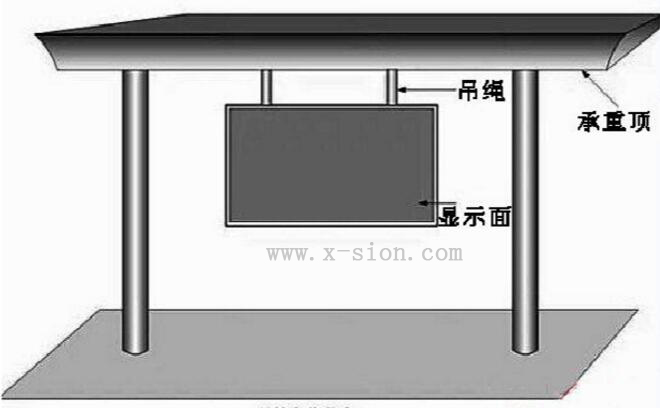

3. Hoisting
The outdoor display is less used for hoisting, and the most common is the lintel display used at the door of the store. Suitable for display screens less than 10 square meters, this installation method must have a suitable location for installation, such as a beam or lintel above. And the screen body generally needs to add a back cover. The indoor load-bearing concrete roof can use standard lifting parts, and the length of the lifting rod depends on the site conditions. The interior steel beam is hoisted with steel wire rope, and the coat is decorated with steel pipe in the same color as the screen body.

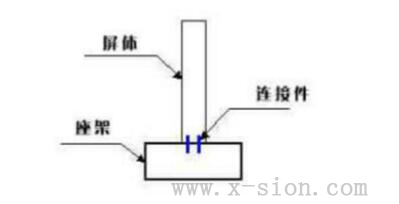

4. Seat fitting
The seat can be divided into:
Movable mount: refers to the frame processed separately. Placed on the ground, can be moved.
Fixed seat: refers to a fixed seat that is connected with the ground or wall.
So now the small pitch LED display has the conditions to enter the room. Through the detachable design, the large-screen LED display is split into a number of 56-inch units, which solves the difficult problem of getting started. The second is the price of diving, compared with large-size LCD TV, small-pitch LED at least 40% cheaper. The future is expected to be from the commercial market to the high-end civilian market. The street light pole screen has the characteristics of synchronous reception and synchronous playback, and is used on the highway, no matter how far the car is, there is always a high-definition street light screen to accompany the content. The light pole screen not only has unique advantages in road guidance, road condition broadcast, information release, advertising and other aspects, but also has a considerable role in alleviating the fatigue of drivers on the highway.
